4.1kw portable cooler with WIFI fuction

Available with 2.6/3.4/4.1kw portable cooler with WIFI fuction

▶ A Refreshingly Efficient Portable Air Conditioning Unit

Enjoy cooling comfort on-the-go with the sleek Forssman’s 2.6 kW Portable Air Conditioner.

Supported by an inbuilt timer, washable filter, and convenient water alarm, this Mobile Air Conditioner makes personalised comfort a breeze.

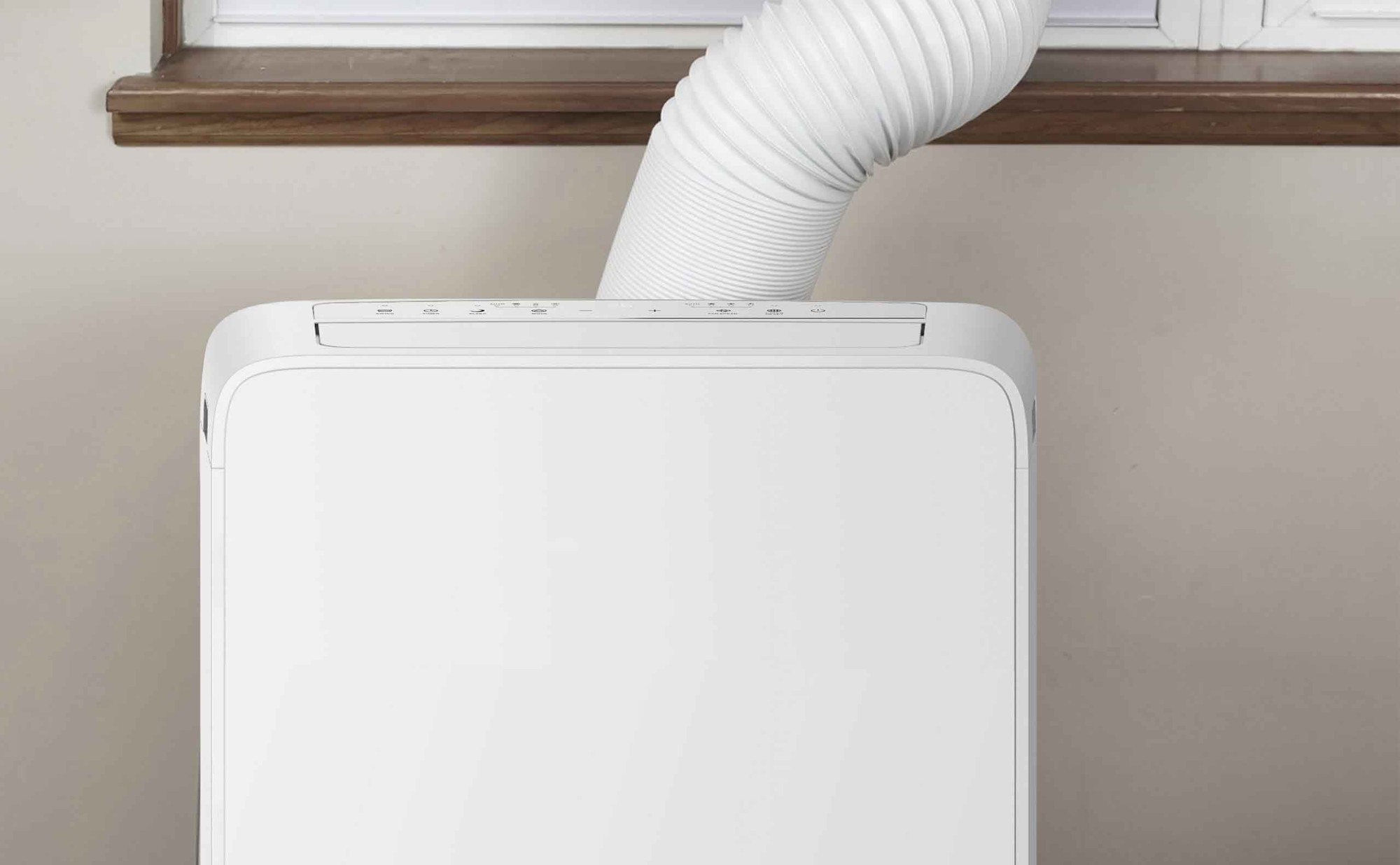

Forget about constantly getting up to empty the water tray, the unit conveniently evaporates condensate through the exhaust duct.  Set-and-forget your 2.6kw Portable Air Conditioner as the intelligent sleep mode, adjustable temperature control and practical remote control provide ultimate climate control with added energy conservation.



▶ Adjustable temperature control

Multiple Speed Fan

Washable Filter

Sleep Mode

Inbuilt timer – set the time for the portable air conditioner to switch on or off depending on your preference

Ventilation kit included

Remote Control

Water Alarm

No need to empty water*



▶ The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products.

*Climate conditions where high humidity is present may require drainage.



▶ Specification:

PRODUCT SPECIFICATION SHEET 产品技术参数表(移动机)RPC41MCWF
Items 项目M seriesAM-14D1A4/MKR2-B5
Dataplate Parameter
铭牌参数
Rated Capacity
额定能力
Cooling 制冷W4100W
Dehumidifying 除湿量Kg/h1.8
Rated Power Consumption
额定功率
Cooling 制冷W1640W
Rated Running Current
额定电流
Cooling 制冷A6.8
Max. Input Power 最大输入功率W1700
Max. Input Current最大输入电流A8.5A
EER Cooling 制冷能效比(EER)W/W2.5
Power supply source 电源类型V/Ph/Hz220-240V/50Hz
Refrigerant 制冷剂/R290
Refrigerant Charged 系统加液量g240
Max. Discharge Pressure 最大排气压力Mpa2.8
Max. Suction Pressure 最大吸气压力Mpa0.8
Air Flow Volume 风量m3/h500
Noise level 内机噪音值(声功率) dB(A)64
Unit net weight 铭牌整机重量(净)Kg36.5
Unit gross weight 铭牌整机重量(毛)Kg41.5
Indoor unit configuration 内机配置
Rows 蒸发器排数 Row4
tube pitch管距mm20.5
row pitch 片宽mm12.7
Inlet and Outlet distributor 管路几进几出/1 in 2 out
Tube
铜管
Material 材料/copper
Length 长度mm345
Diameter  外径mm7
Thickness 壁厚mm0.24
Quantity 根数21
Fin
翅片
Material 材料/blue fin
Thickness 片厚mm0.095
Fin spacing 片距mm1.4
Fins per inch 每英寸25.4mm翅片数Pcs18
Face Area 迎风面积(长×宽)0.345*0.287
Fan system
风系统
Fan
内机风叶
Type 类型/Fan
Material 风叶材料/ABS+GF15
 Diameter外径mm231
 Length 长度mm109
Fan motor
 内电机
Model 内电机型号PcsYDK25-6H
insulation grade 绝缘等级/B
Capacitor 内电机电容μF1.5
Motor speed (r/min) 转速(高中低)rpm720/620/520
Rated Current 额定电流A0.28/-/-
Rated Input Power 额定输入功率W65/-/-
Rated Output Power 额定输出功率W25
Air circulation (H/M/L) 循环风量(高中低)m3/h500/420/340
 Dimension
 内机尺寸
Packing Type(6 face/4 face)包装类型(六面/四面)/6 face
Net Dimension净尺寸
(Height高度*Width宽度x Depth深度)
mm802*493*415
Packing  Dimension包装尺寸
(Height高度*Width宽度x Depth深度)
mm885*570*515
Condensate Drainage Pipe (O.D) 排水管外径mm16.5
Condensate Drainage Pipe ( L) 长度mm600
Outdoor unit configuration 外机配置Compressor Model 压缩机型号/QXD-B245T130C
Compressor Parameter
压缩机参数
type 类型/Rotory
Brand 品牌/LANDA
Capacity 制冷能力     W3736
Input 输入功率    W1110
Rated current(RLA) 额定电流A4.9
Locked rotor Amp(LRA) 堵转电流A26
Fan system风系统Fan
外机风叶
Type 类型/Fan
Vane Number 叶片数/53
Diameter 风叶直径mm250
Fan motor
外电机
Model 外电机型号/YDK55-4H
Quantity 数量/1
insulation grade 绝缘等级/B
Capacitor 外电机电容μF3.5
Rated Current 额定电流A0.57
Rated Input Power 输入功率W124
Rated Output Power 输出功率W55
Air circulation 循环风量m3/h/
Condenser
冷凝器
Rows 冷凝器排数Row4
tube  pitch 管距mm19.5
row pitch片宽mm11.6
Inlet and Outlet distributor 管路几进几出/2 IN 1 OUT
Bended or Flat 弯排还是直排/ Flat
Tube
铜管
Material 材料/copper
Length 长度mm290
Diameter外径mm5
Thickness 壁厚mm0.2
Quantity 根数35
Fin
翅片
Material 材料/blue fin
Thickness片厚mm0.095
Fin spacing 片距mm1.2
Fins per inch 每英寸25.4mm翅片数Pcs21
Face Area 迎风面积(长×宽)0.290*0.351
截流装置截流装置类型/capillary
Capillary A
 毛细管组件
Material 材料/copper
Capillary Specification for Cooling 制冷毛细管规格mm2.6*1.3*600
Container Loading 20/40/40HC 装箱量80/184/275
